The systems help reduce production costs and maximize output by eliminating bottlenecks and improving accuracy. They will be even more optimized when combined with Digicorp’s SMT Robots
ROBOT OPERATION CYCLE
- The robot will arrive at the designated location on the coveyor to pick up the goods.
- It will then automatically sort the batch of products for distribution to the correct delivery location.
- At the end of the task, the robot will automatically return to the charging station if no other tasks are detected.)
Intelligent design allows for bidirectional movement
Easily handles narrow passageways
Fast charging technology, automatic charging, ensures 24/7 operation, enhances performance

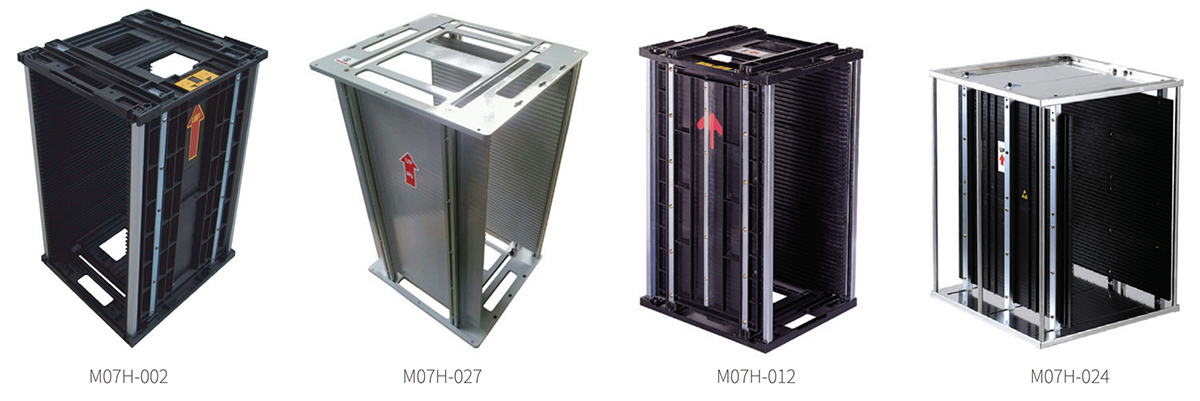

Compatible with various magazine sizes
Compatible with all production lines
Exclusive connection solution
Integrates with all production lines without interfering
with the controller
User-friendly interface on a website platform
Allows monitoring and supervision from anywhere

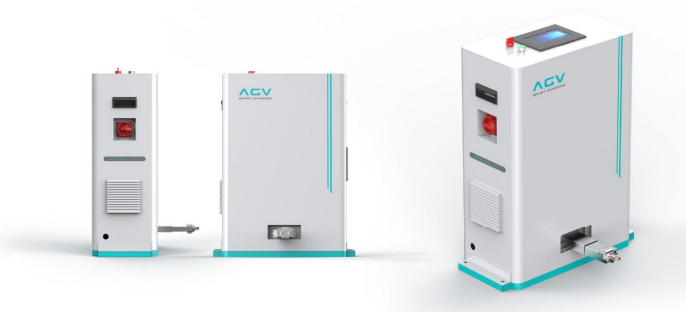

With the ability to automatically receive, distribute, and lift loads, SMT robots are widely used in many factories and logistics warehouses both domestically and internationally. Additionally, the feature of automatically using elevators and electric gates enables the robot to move flexibly without human assistance.
Technical Specifications
| Robot size (RxSxC): | 1300*600*1350 mm | Payload: | 80 Kg |
| Robot weight (included battery) : | 300 Kg | Position error: | ≤ 5 mm |
| Capacity: | 2.58 Kw | Charging time: | 2 h |
| Battery capacity: | 50.4 Ah | Lifting height: | 200-1100 mm |
| HD Screen : | 10.1 inch | Operating system: | Windows |
